Woodpecker Surgic Touch

WoodpeckerSKU: WOO/SURGIC/LED
RRP: £2,993.00 Need Help? Have a Question?

Price:
£2,693.70 ex. VAT (£3,232.44 inc. VAT)

Description

Woodpecker Surgic Touch

The Third Generation Of Woodpecker Piezo Bone Surgery.

Clinical application:

Minimally invasive tooth extraction, Intralift, Sinus Lift, Alveoloplasty, Apical cyst extraction, Crown Extension, Crest splitting, etc.

Micron Cutting:

The vibration amplitude of tip is between 20-100um.

The minimum surgical incision is 3.5mm long, 0.5mm wide, which will help with small operating area and fast postoperative recovery.

Selective cutting with no injury to soft tissue:

For soft tissues (neural, blood vessels and mucous membranes, etc.), there is no cutting effect, which can protect the vascular nerve of the operation area to a large extent, greatly reducing the risk of injuring soft tissues (neural, vascular, mucosal, etc.)

Cold Cutting Mode:

Ultrasonic technology produces very little heat while cutting. And iced water can quickly cool the tip and ensure the temperature below 38°C. At the same time, the water spray flushes the wound during operation, bringing no bleeding and enabling clear vision of operation area, which makes it easy to operate.

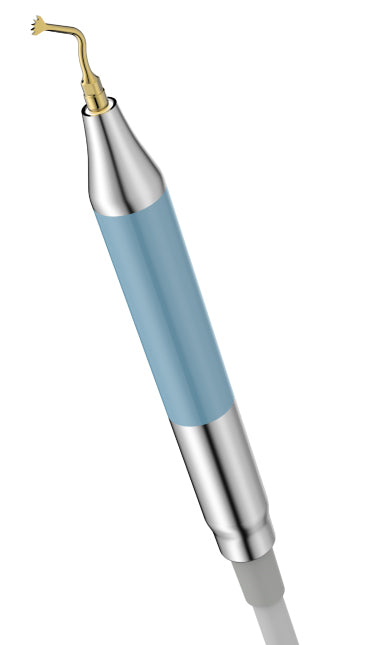

High-performance Handpiece:

Optimized handpiece with stronger sealing technology. High temperature cooking disinfection causes no loss of performance. High-brightness LED brings clearer operating vision. Bringing doctor better clinical application experience.

Cutting Mode:

Under cutting mode, according to the bone density, adjust power and water volume. The power levels are divided into 7 classes:

  • 01: Level 5, 6 and 7: Class I bone (suitable for bone with high bone density/big cortical bone)
  • 02: Level 3 and 4: Class II bone (suitable for bone with high bone density/large cortical bone)
  • 03: Level 2 and 3: Class III bone (suitable for bone with uniform bone density/good cortical bone)
  • 04: Level 1 and 2: Porotic bone (suitable for bone with low bone density/poor cortical bone)

Different bones respectively match 7 power levels, avoiding over power output and improving safety and stability.

Periodontal mode:

Under teeth mode, the power and water volume are adjustable.

Endodontic mode:

Under teeth mode, the power and water volume are adjustable.

Cleaning mode:

Under cleaning more, step on foot pedal for 3s to confirm cleaning, then the main unit can automatically complete pipe cleaning for 25s. After each treatment, please clean the waterway (include pump line and handpiece).

  • Dimension: 276mm x 267mm x 110mm
  • Intermittent running device: Intermittent running with 10s pause after 60s operation.
  • Water flow: 25-110ml/m
  • Mains voltage: 100-240V~50Hz150VA
  • Working frequency: 24-36KHZ
  • Weight: 2.8KG
  • Warranty: 5 years

Unit Includes:

  • Tip: US1, US2, US3, US4, US5, US1L, US1R, UL1, UL2, UL3, UL4, UL5, UI1, UC1
  • Hook x1
  • Foot switch x1
  • Handpiece x2
  • Tip holder x2
  • Pump tubing x8
  • Connector for pump tubing x4
  • Sterilize box x2
  • Torque Wrench x1
  • Single Package x2
  • Tip book x1
  • Silicone handle holder x2
  • Normal saline connector x2
