Description

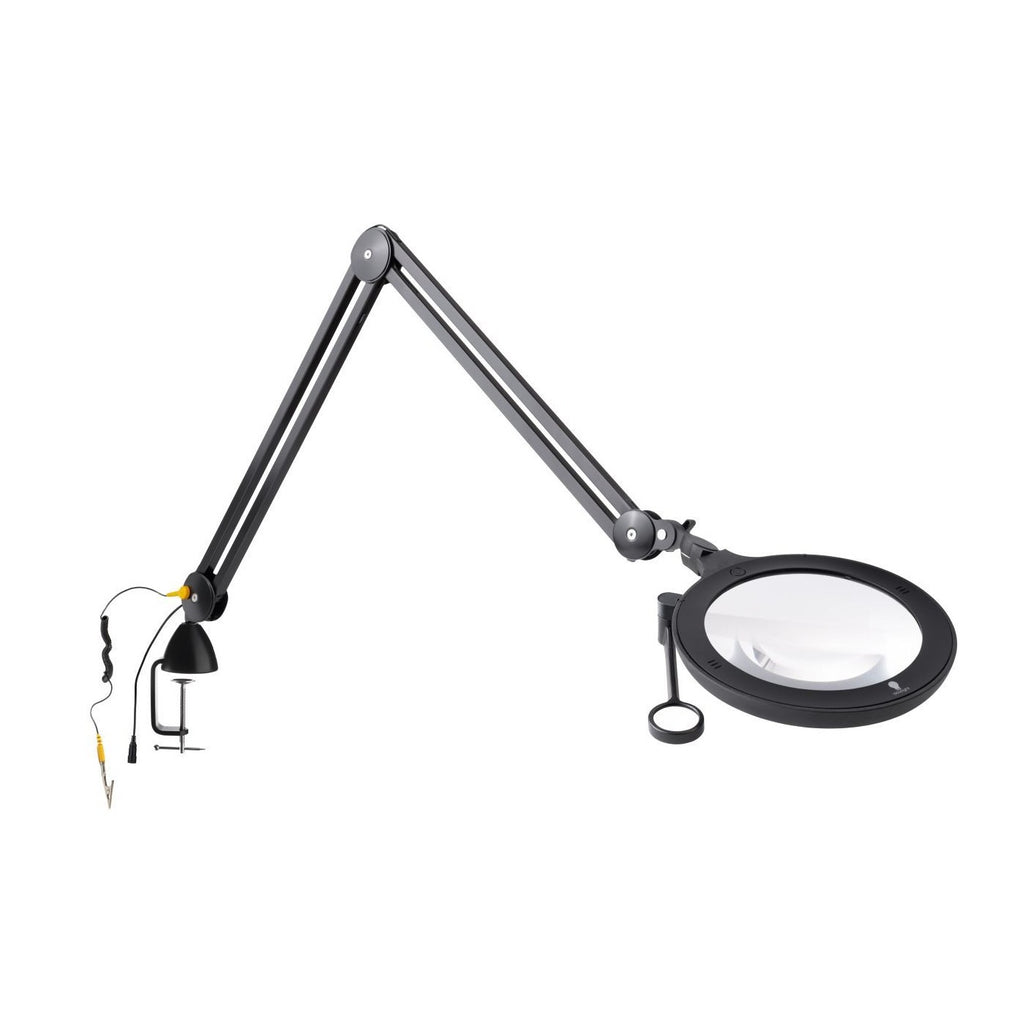

Omega 7 ESD Magnifier
Our Omega 7 ESD Magnifier is made of carbon-fiber and special conductive coatings guaranteeing full ESD compliance for the lifetime of the magnifier. It has a large optical quality glass lens (17.5 cm - 7”) and 3 dioptres (1.75X) providing the largest field of view for precise inspection of electronic components. Supplied with a 12 dioptres (4.0X) swing arm lens for inspecting fine detail. An optional 12.7 cm (5”) diameter with 5 dioptres (2.25X) lens is available separately.
Comes with a clamp that you can secure to the side of the bench.
- Light source: LED
- Lumens: 814
- Lux at 15 cm: 6,300
- Colour temperature: 6,000°K
- CRI: 80+
- Energy consumption: 12W
- Colour: black
- LED rated life (hours): 50,000
- 2 steps touch dimmer: 6,300 – 3,000
- Lens Ø: 17.5 cm (7″)
- Lens material: Optical quality low iron glass (ESD safe)
- Magnification: 3 dioptres (1.75X)
- Additional magnification: 12 dioptres (4.0X)
- Height: 60 cm (23.6″)
Width: 23 cm (9″)
Depth: 90 cm (35″)
- ESD safe
- Optical quality low iron glass lens Ø 17.5 cm (7″)
- 3 Dioptres (1.75X)
- 12 Dioptres (4.0X)
- 2 Brightness levels
- Long reach 118 cm
- Adjustable head joint with wing nut
