Daylight Quadra ESD & UV Magnifier

DaylightSKU: DAY/D25181
RRP: £416.66 Need Help? Have a Question?

£395.82 ex. VAT (£474.98 inc. VAT)


Quadra ESD & UV Magnifier

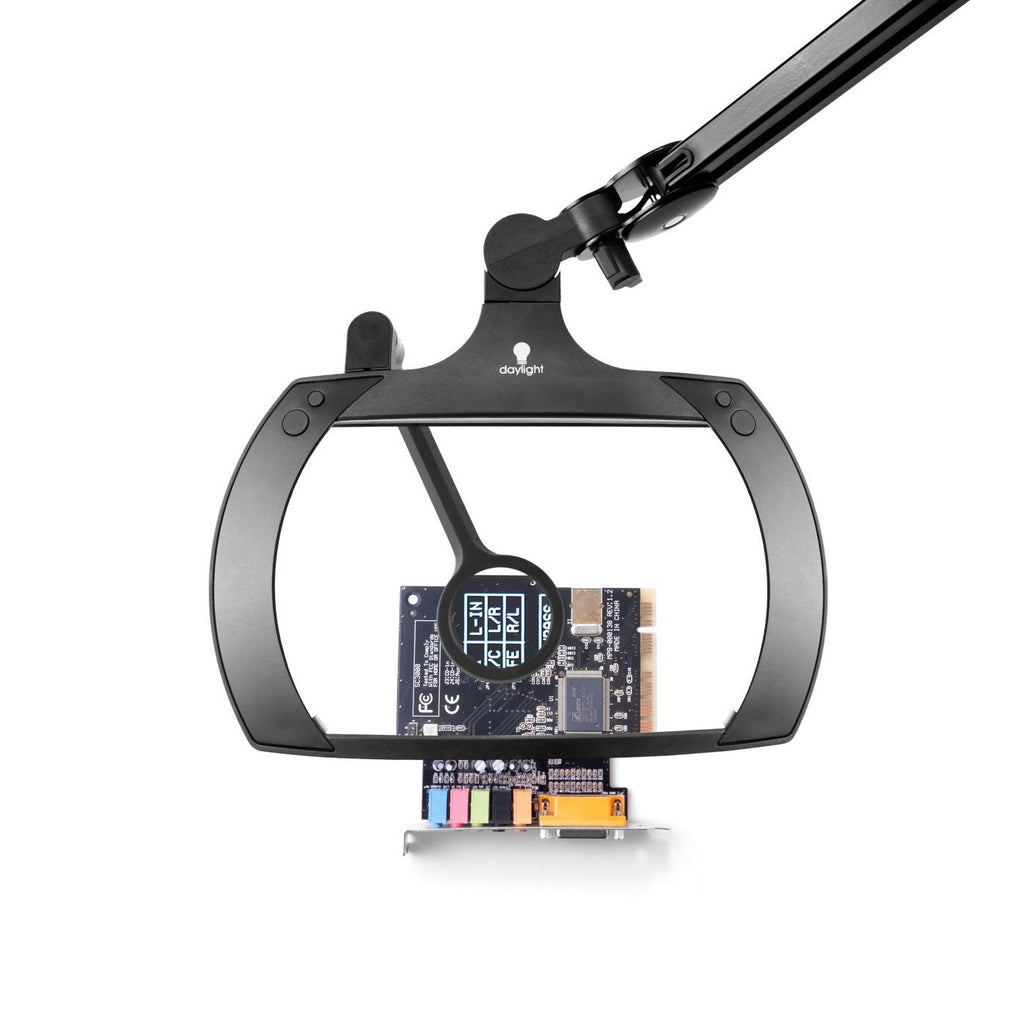

Quadra ESD & UV has 4 features in 1: full ESD compliance, extra wide rectangular lens, daylight 6,000°K LED & UV-A LED. High tech carbon-fibre and special conductive coatings guarantee full ESD compliance for the lifetime of the magnifier. An extra wide, 3 dioptres (1.75X) optical quality glass lens provides a superb panoramic view. High power 6,000°K daylight LEDs on both sides of the lens give shadow-free magnification, or alternatively, each side can be independently turned on or off to give 3D magnification. With integral UV-A (365nm) LEDs, detailed inspection of conformal coatings can be quickly and safely carried out as well as thorough checking of soldered joints, welds and other mechanical stress areas. Heavy duty internal spring arm allows accurate and consistent positioning and an auto switch off function saves energy. The 12 diopter (4.0X) ESD swing arm lens is included.

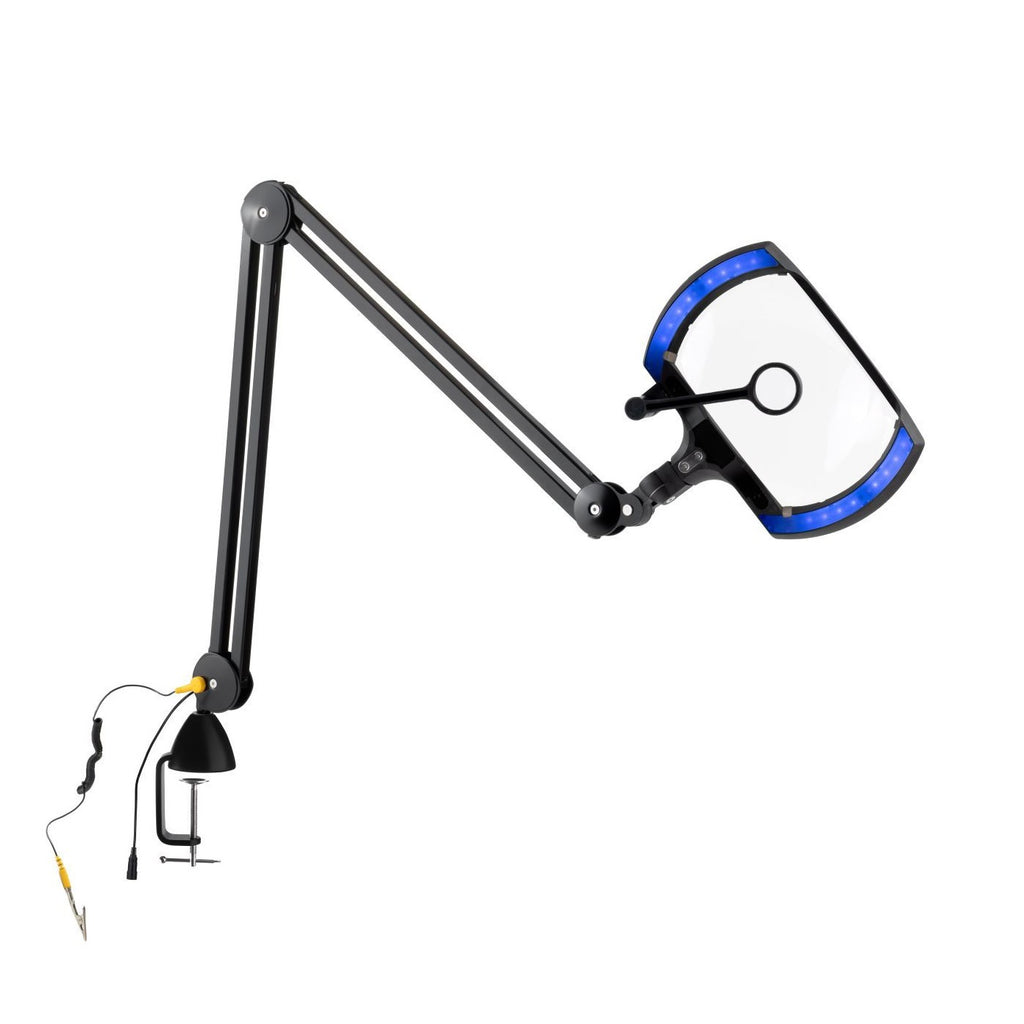

Comes with a clamp that you can secure to the side of the bench.

  • ESD safe
  • LED & UV-A LED for conformal coating inspection
  • Independent right and left switches
  • Rectangular lens 20.3 X 12.7 cm
  • Long reach 118cm
  • 12 dioptres (4.0X) swing arm lens included
  • Adjustable head joint with wing nut
  • Light source: LED
  • Lumens: 524
  • Lux at 15 cm: 4,500
  • Colour temperature: 6,000°K
  • CRI: 80+
  • Energy consumption: 11W
  • Colour: black
  • LED rated life (hours): 50,000
  • 2 steps touch dimmer: 4,500 – 3,000
  • Lens size: 20.3 X 12.7 cm
  • Lens material: Optical quality low iron glass (ESD safe)
  • Magnification: 3 dioptres (1.75X)
  • Additional magnification: 12 dioptres (4.0X)
  • Height: 60 cm (23.6″)
    Width: 25.5 cm (10″)
    Depth: 78 cm (31″)
