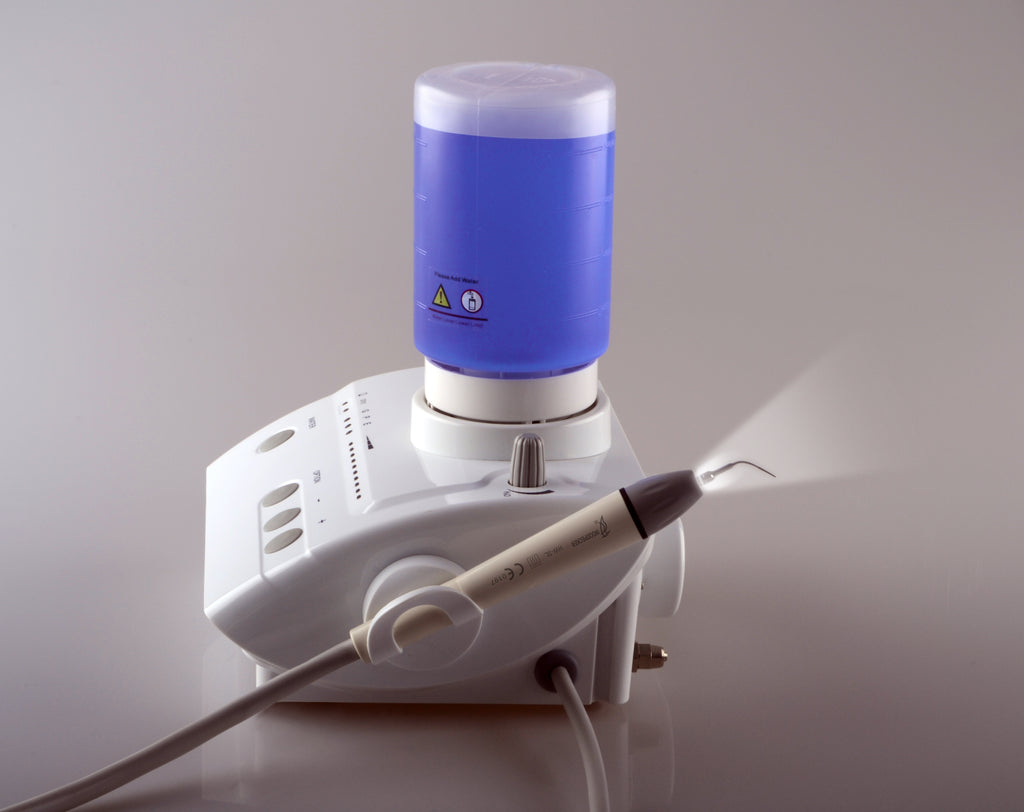

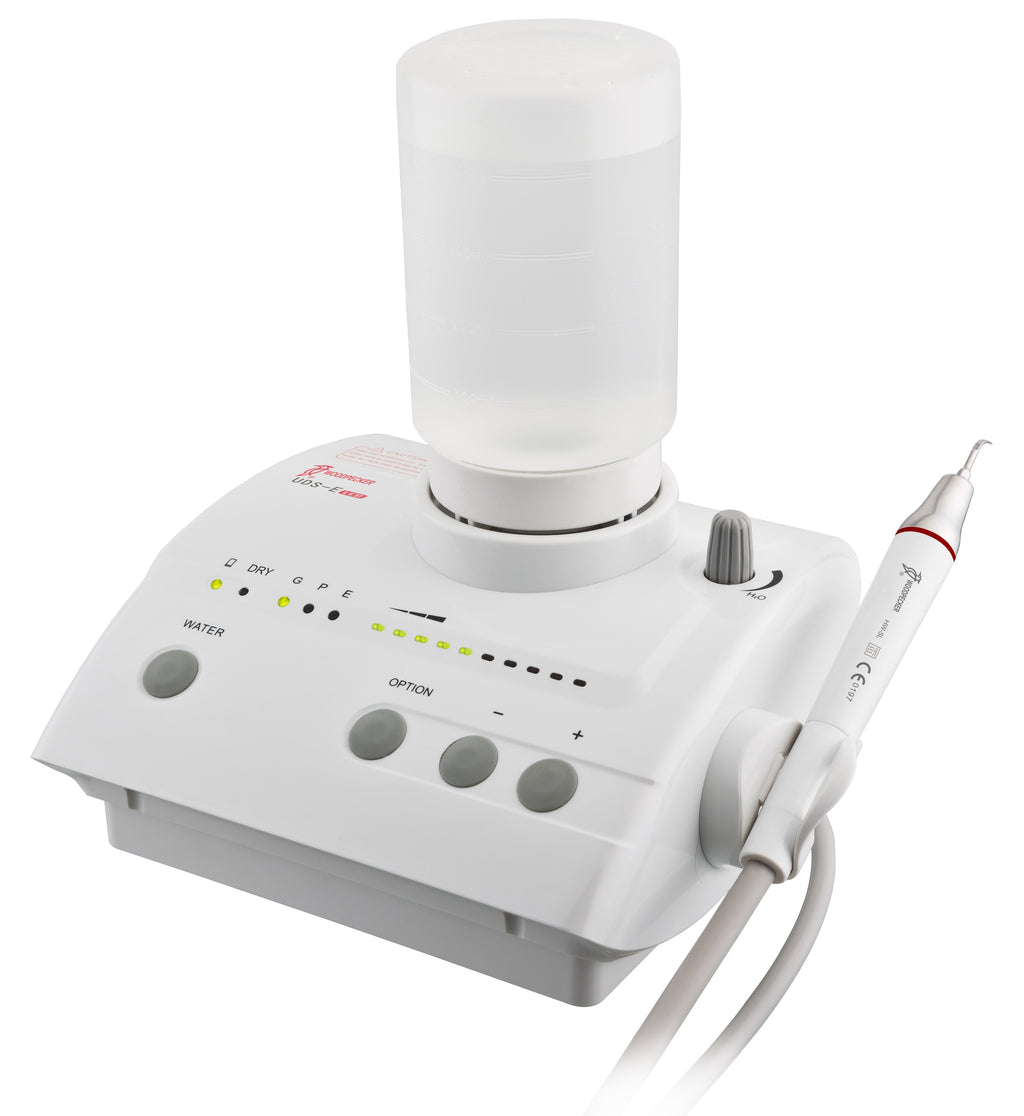

Woodpecker UDS-E LED Ultrasonic Scaler
The UDS-E LED is a four-function (scaling, perio, endo and auto-water supply) ultrasonic piezo scaler with a detachable handpiece incorporating an LED light.
The unit features automatic frequency tracking which ensures that it is always operating on the most efficient frequency for optimum performance. It also features a built-in 350ml capacity water container, however, there is also an adaptor for an external water source and a spare bottle.
- Complete with 8 tips (G1, G4, G5, G6, P1, P3, P4D, E1), torque wrench, tip holder and spare bottle
- LED Handpiece for better visibility
- Auto-water supply function
- Clinical fluids, such as hydrogen peroxide, chlorhexidine and sodium hypochlorite, etc., can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically
- PC controlled for easy operation and more efficient scaling
- Automatic frequency testing
- EMS compatible handpiece
- Scaling Frequency: Average 28000 - 29000Hz
- Perio Frequency: Average 28000 - 29000Hz
- Endo Frequency: Average 27000Hz
- Power input 220-240V ~ 50Hz/60Hz
- Main unit input 24V ~ 50Hz/60Hz 1.3A
- Output power 3W~ 20W
- Frequency 28kHz - 3kHz
- Water pressure 0.1bar ~ 5bar (0.01MPa ~ 0.5MPa)
- Main unit weight 1.35kg
- Dims 234mm x 193mm x 109mm
