Getting the working length right is the quiet foundation of every successful root canal. Prepare and fill a canal too short and you leave infected tissue behind; push beyond the apex and you risk pain, damage and a compromised result. For many years, working length was estimated mainly with radiographs, alongside clinical methods such as tactile sensation and paper-point assessment, which offer only a two-dimensional view and can require repeated exposures. The apex locator changed that: used correctly, it provides a reliable electronic estimate of the apical endpoint. If you are buying or replacing one, this guide explains what it does, why it matters, and how to choose a model that earns its place in your surgery.
What is an apex locator?

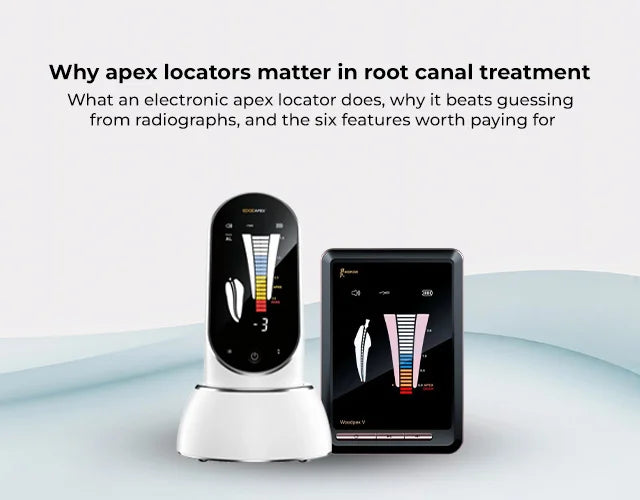

An apex locator is a small electronic device that determines the position of your file tip inside the root canal by measuring changes in electrical impedance within the root canal as the file approaches the apex. Rather than estimating length from a two-dimensional image, it identifies the apical constriction the narrowest point of the canal, usually a little short of the anatomical apex which is the commonly recommended endpoint (its exact position varies with root anatomy) for cleaning, shaping and filling.
Most modern units are more precisely called an electronic apex locator, or EAL. A file clip attaches to the endodontic file and a lip hook to the patient, completing a circuit through the tooth, and a display shows the file's progress towards the apex in real time.
Why apex locators matter in root canal treatment
Accurate length control is the of one of the most important factors in achieving a well-obturated canal. During root canal treatment, an apex locator gives you three practical advantages.
The first is precision. Radiographs flatten a three-dimensional root system into a single plane, and curved or superimposed canals are easy to misjudge. An EAL electronically estimates the position of the file tip relative to the apical endpoint, so your endodontic files stop where they should. The second is the potential to reduce the number of working-length radiographs, meaning less radiation for the patient and less time re-exposing films. The third is confidence during obturation: when you know the determined working length, you can compact gutta percha to a reproducible endpoint rather than hoping the master cone sits correctly.
None of this replaces radiographs entirely. Best practice is to use the apex locator and a confirmatory radiograph together, each covering the other's blind spots.
How do electronic apex locators work?
Early devices measured simple electrical resistance and were unreliable when the canal was wet with blood, pus or irrigant. Modern units solved this by measuring impedance at two or more frequencies and comparing the ratio between them. Because that ratio behaves predictably as the file nears the apical constriction, today's multi-frequency electronic apex locator stays accurate whether the canal is dry, moist or full of sodium hypochlorite. Contemporary EALs are frequently reported to locate the apical constriction to within ±0.5 mm in a high proportion of cases (Gordon and Chandler, International Endodontic Journal, 2004), provided the technique is sound which is why they are now standard equipment rather than a luxury.
What to look for when choosing an apex locator
Not every device suits every practice, so weigh the following before you buy.
Multi-frequency accuracy: Choose a unit that measures across multiple frequencies that keeps readings stable in the presence of irrigants and moisture, and this ratio-based approach is what allows reliable readings in wet canals (Kobayashi and Suda, Journal of Endodontics, 1994).
A clear, readable display: A bright screen with a distinct apical zone and an audible warning tone makes the file's approach easy to follow mid-procedure.
Standalone or integrated: Some clinicians prefer a compact standalone locator; others want length control built into their rotary system. Many manufacturers now offer a combined endodontic motor and apex locator, so the file slows or reverses automatically as it nears the apex. If you are also upgrading your motor, an integrated unit can save bench space and streamline the workflow.
Added functions: Several models include a built-in pulp tester for pulp sensibility testing, giving you two diagnostic tools in one. Consider whether that consolidation suits your caseload.
Calibration and ease of use: Look for a device that needs no manual calibration and holds its accuracy over time, with a rechargeable battery and accessories that are simple to sterilise.
Support and warranty: An apex locator is a long-term investment, so buy from a supplier who offers a warranty, spare clips and hooks, and responsive after-sales support.
Best practice and common mistakes
Even the best device gives poor readings if the fundamentals slip. Ensure clean electrical contact: a dry file clip, a properly placed lip hook and no contact between the file and a metal restoration. Excess irrigant in the pulp chamber can create a conductive pathway to the gingiva or a metal restoration and produce premature or unstable readings, which is why manufacturers generally advise removing excess fluid from the chamber before measuring. Confirm your zero reference with a radiograph in difficult anatomy, and remember that a very wide open apex as in an immature tooth can challenge any locator.
A note of caution: manufacturers have historically advised care when using electronic devices in patients with cardiac pacemakers or defibrillators, While in vitro and in vivo studies have reported no clinically significant interference with pacemakers or implantable defibrillators (for example, Gomez et al., 2013, and Moraes et al., 2016, both in the International Endodontic Journal), the sensible course is to follow the device instructions and consult the patient's cardiologist where there is any doubt.
The bottom line
A reliable apex locator pays for itself in accuracy, reduced radiation and more efficient, more predictable treatment. Prioritise a multi-frequency device with a clear display, decide whether a standalone locator or an integrated endodontic motor suits your workflow, and buy from a supplier who will support the unit for years. Do that, and every canal you clean, shape and fill with gutta percha starts from a length you can trust.
Ready to upgrade? Explore Qudent's range of apex locators and pulp testers including trusted Woodpecker and DTE models and match the length-control solution to your practice. Not sure which suits your setup? Get in touch before you order and the team will help.
Frequently asked questions
Are apex locators accurate enough to replace X-rays?
No single tool should be used alone. An apex locator has been shown to be accurate for estimating working length and may reduce the number of radiographs needed (Martins et al., Journal of Endodontics, 2014), but a confirmatory radiograph remains part of sound root canal treatment, particularly in complex anatomy.
Do apex locators work in wet canals?
Modern multi-frequency units are designed to. They remain reliable in the presence of blood, pulp tissue and irrigants (Kobayashi and Suda, Journal of Endodontics, 1994) such as sodium hypochlorite, which is a major advance over older resistance-based designs.
Can one device measure length and test pulp vitality?
Yes. Several current models combine an apex locator with a pulp tester, offering length determination and pulp sensibility assessment in a single unit.
