Eighteeth Helios 680 Intraoral Scanner
SKU: EDP001
- Regular price
- £5,999.90 ex. VAT (£7,199.88 inc. VAT)
- Sale price
- (£7,199.88 inc. VAT)
- Regular price

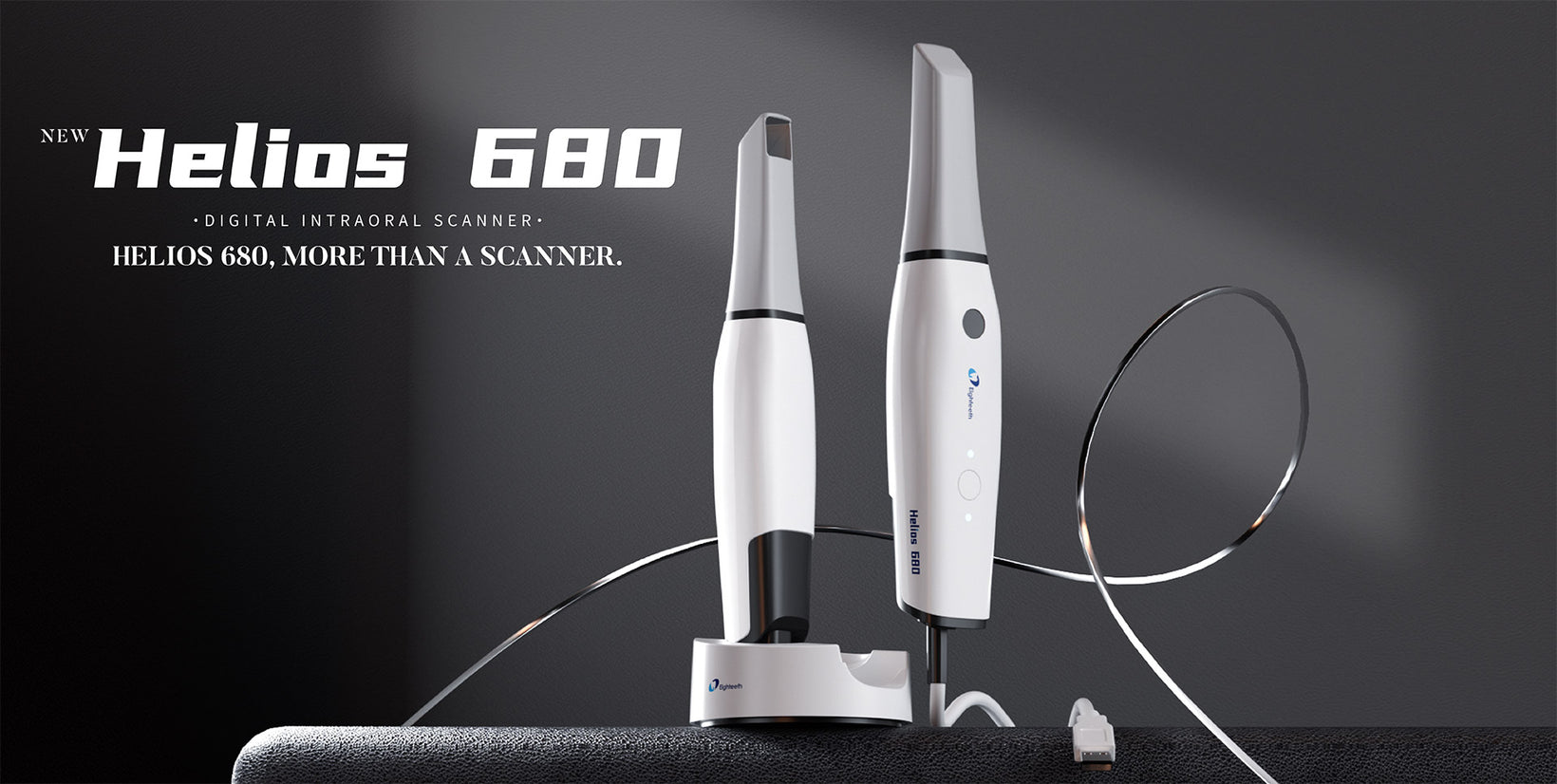

Helios 680 Digital Intraoral Scanner | QUDENT
The Helios 680 is a next-generation intraoral scanner designed for ultimate precision, ease of use, and enhanced digital workflows. Featuring AI-powered tools, real-colour 3D scanning, and automatic calibration, it is engineered to streamline dental diagnostics and patient communication. With built-in cloud connectivity and a durable, ergonomic design, the Helios 680 is more than just a scanner; it’s a comprehensive digital solution for modern dental practices.

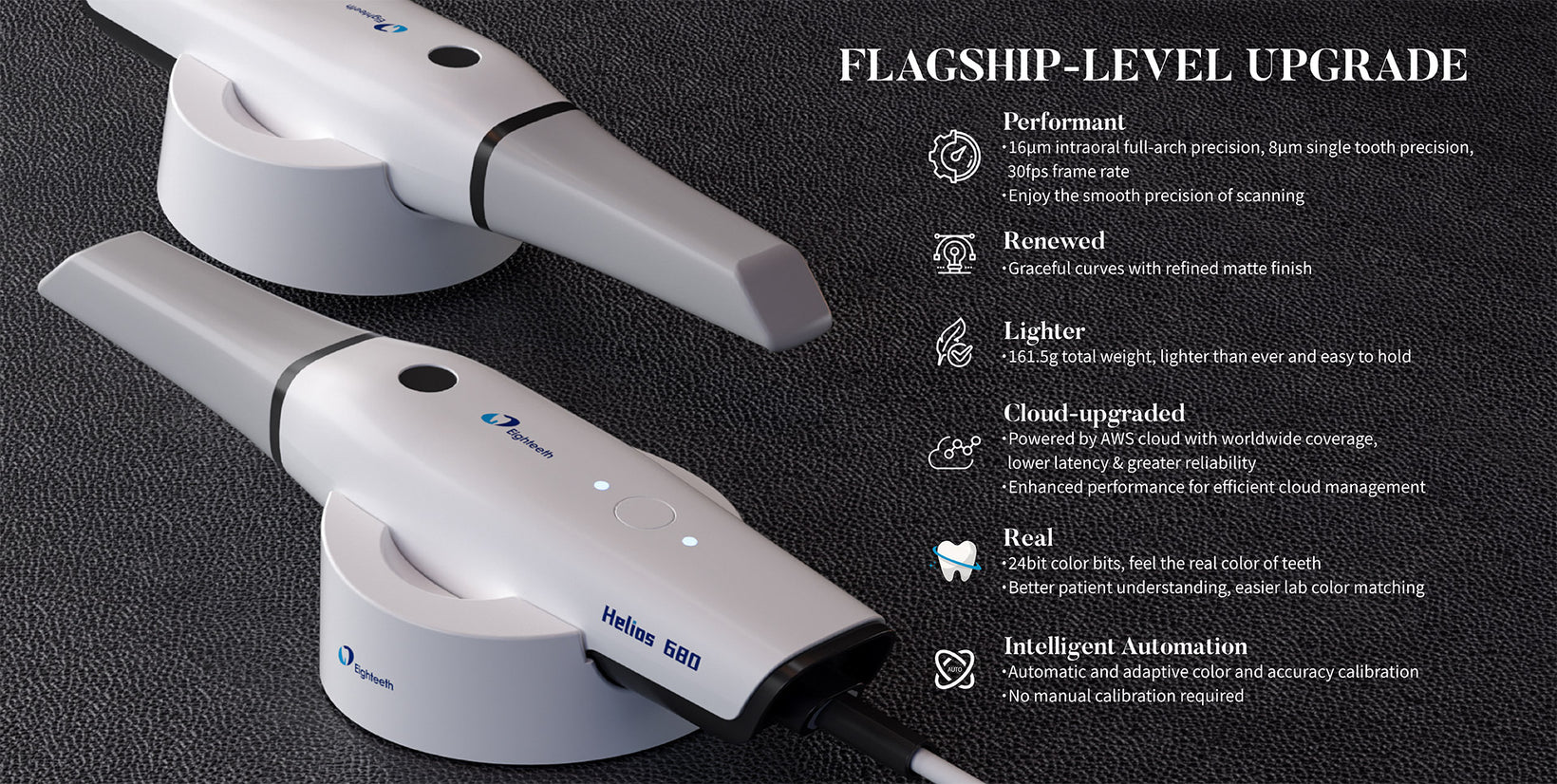

Features:
Intraoral Scanner
- High precision scanning: 16μm full-arch accuracy and 8μm single-tooth precision
- Fast performance: 30 frames per second scanning speed for smooth image capture
- True colour scanning: 24-bit colour depth to accurately replicate real tooth shades
- Ergonomic and lightweight: Weighs just 161.5g, ensuring fatigue-free operation
- Automatic mode detection: No manual switching between modes or handpieces

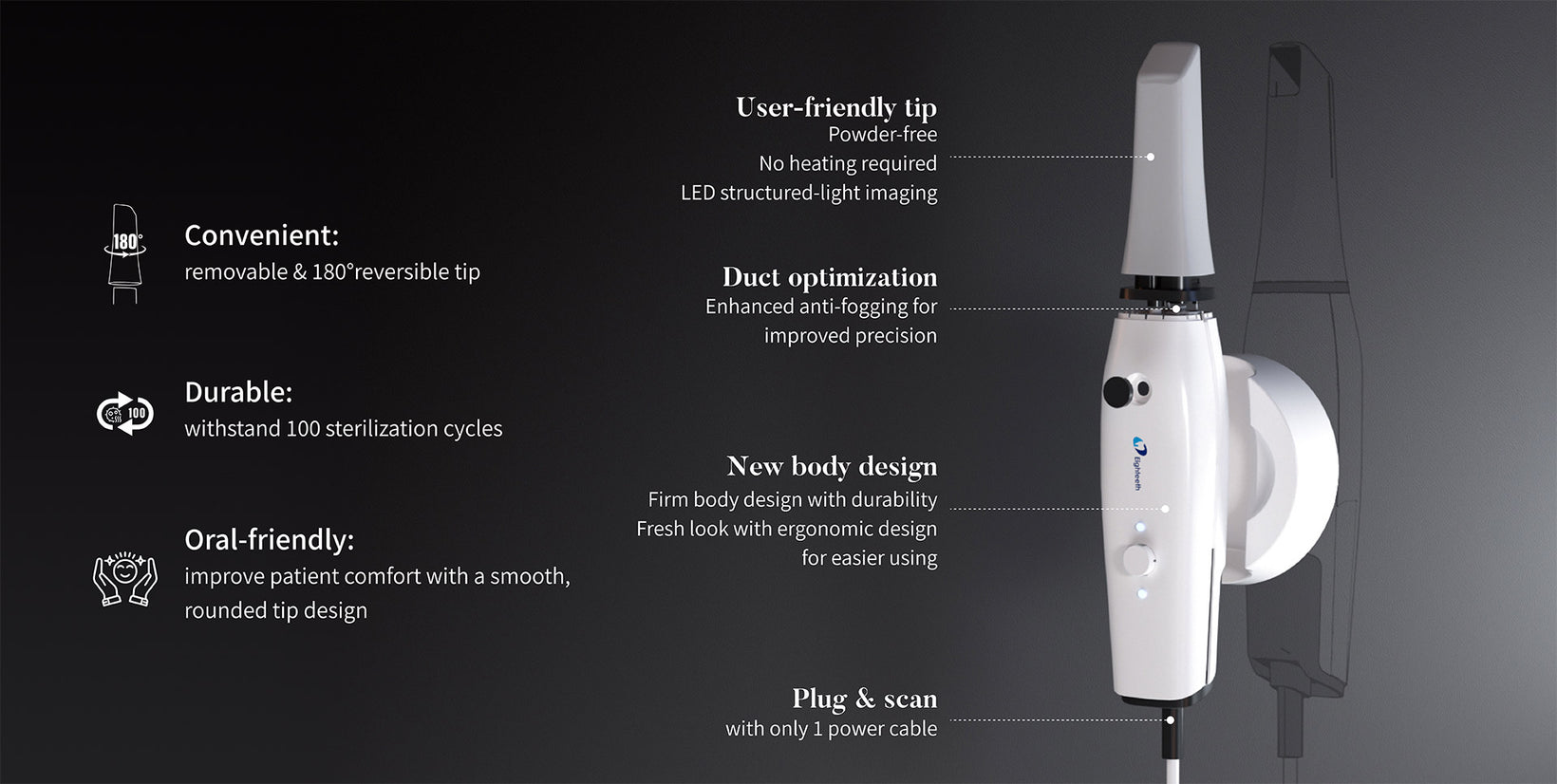

- Anti-fog duct optimisation: Ensures consistent clarity and scanning precision
- 180° reversible and autoclavable tip: Removable, supports 100 sterilisation cycles
- Powder-free operation: LED structured-light imaging with no heating required
- Plug-and-scan design: Single USB 3.0 cable for both power and data
- Cloud integration: AWS-powered with 100GB free cloud storage
- Calibration-free: No manual calibration is needed for colour or accuracy

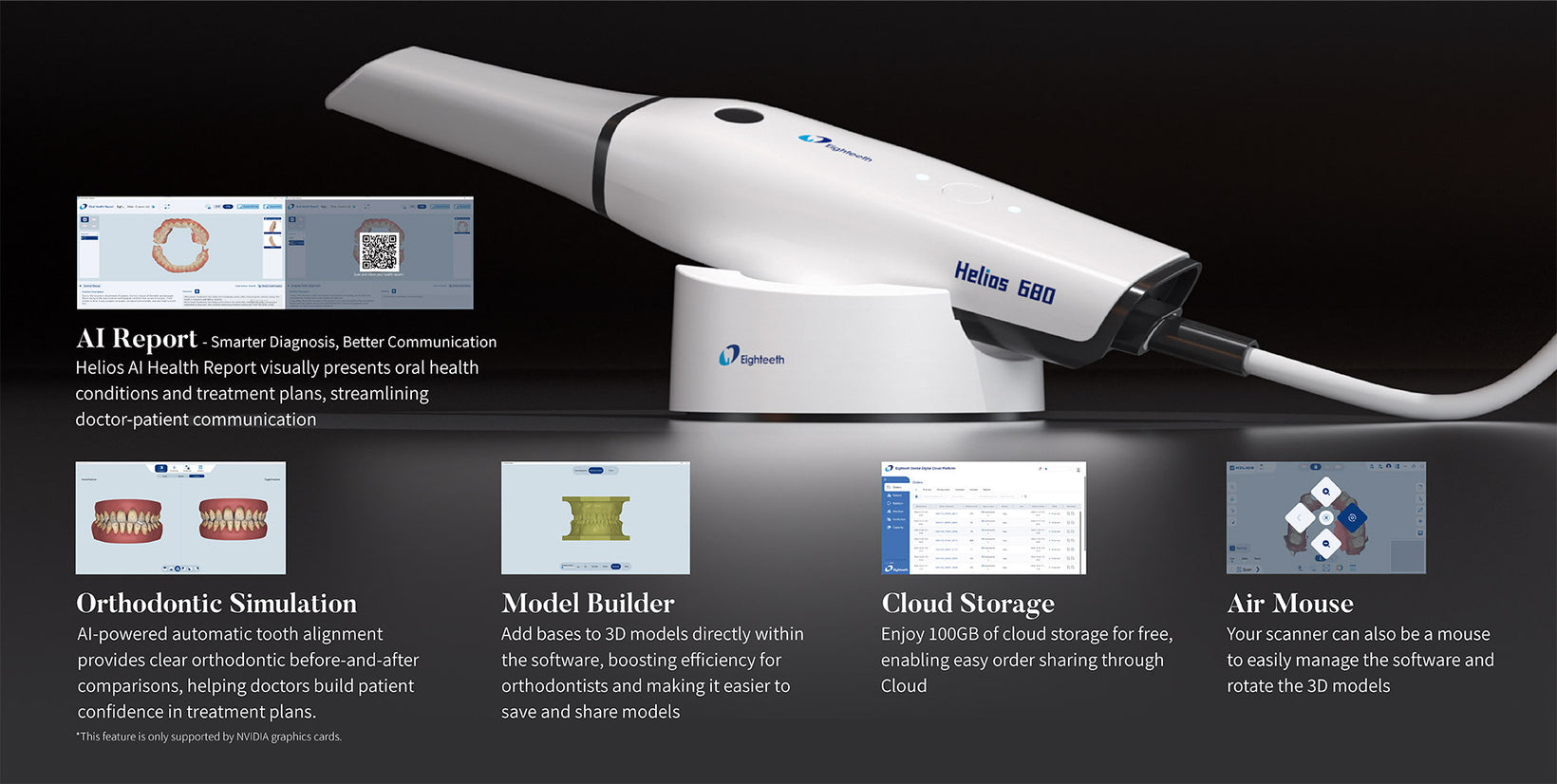

Software Capabilities
- AI Report: Generates visual oral health reports for better patient communication
- Orthodontic Simulation: Before-and-after alignment previews (NVIDIA required)
- Model Builder: Create 3D models and add bases directly in software
- Air Mouse: Scanner acts as a mouse for easier manipulation of 3D models
- Cloud Storage: Save and access scans from anywhere via secure cloud
Multi-functional Toolkit: Includes tools for occlusion analysis, undercut detection, tooth measurement, shining mode, swap upper/lower jaw, margin line drawing, and more

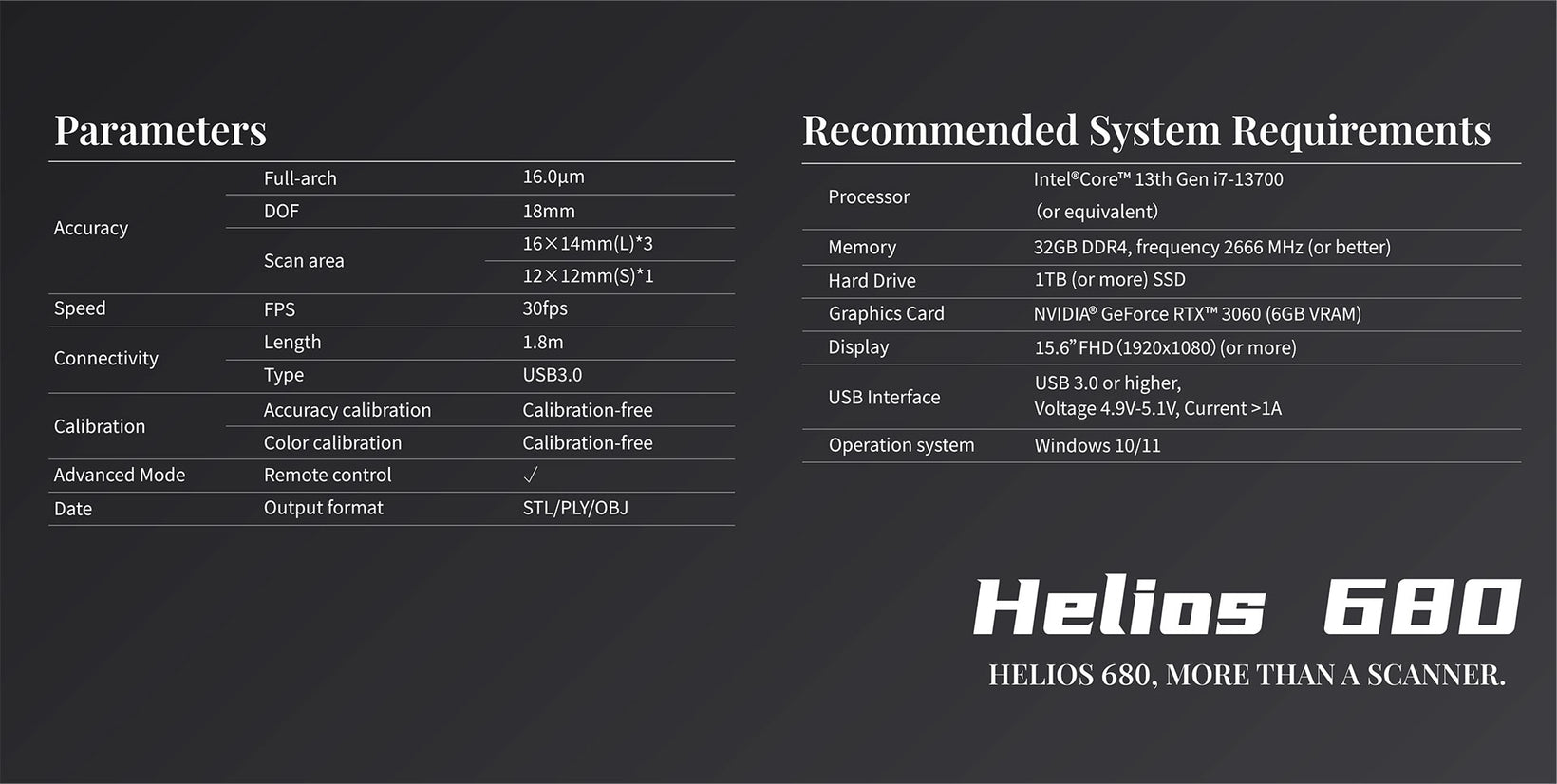

Technical Specifications:
Scanner Parameters:
- Accuracy (Full-arch): 16.0 μm
- Depth of field (DOF): 18 mm
- Scan area: 16 × 14 mm (Large) / 12 × 12 mm (Small)
- Frame rate: 30 frames per second (fps)
- Cable length: 1.8 metres
- Connectivity: USB 3.0
- Calibration: Fully automatic, calibration-free for both colour and accuracy
- Output formats: STL, PLY, OBJ
- Remote control: Supported
Recommended System Requirements:
- Processor: Intel® Core™ i7-13700 (13th Gen) or equivalent
- RAM: 32GB DDR4, 2666 MHz or higher
- Hard drive: Minimum 1TB SSD
- Graphics card: NVIDIA® GeForce RTX™ 3060 with 6GB VRAM
- Display: 15.6” Full HD (1920×1080) or larger
- Operating system: Windows 10 or Windows 11
- USB interface: USB 3.0 or higher
- Power supply: Voltage 4.9V–5.1V, Current >1A
Packaging includes the following:
- 1 x Helios 680 scanner unit
- 1 x Reversible scanning tip (removable & autoclavable up to 100 uses)
- 1 x Charging and storage cradle
- 1 x USB 3.0 data/power cable
- 1 x Calibration-free software licence
- 1 x AI Report functionality (software-integrated)
- 1 x User manual & installation guide
- 100GB Cloud storage (included)
- Access to the Helios software suite with all features enabled
