TKD Duo Pad Control Panel for Definitive Motor

Save 5%
RRP: £752.35 Need Help? Have a Question?

£714.73 ex. VAT (£857.68 inc. VAT) was £752.35 ex .VAT


TKD Duo Pad Control Panel for Definitive Motor | QUDENT

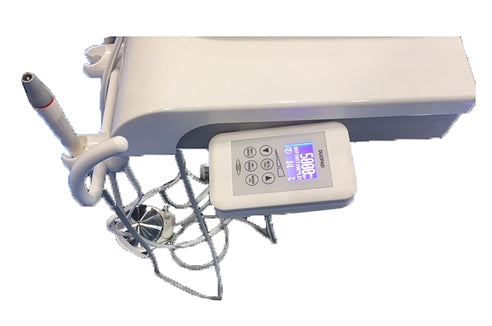

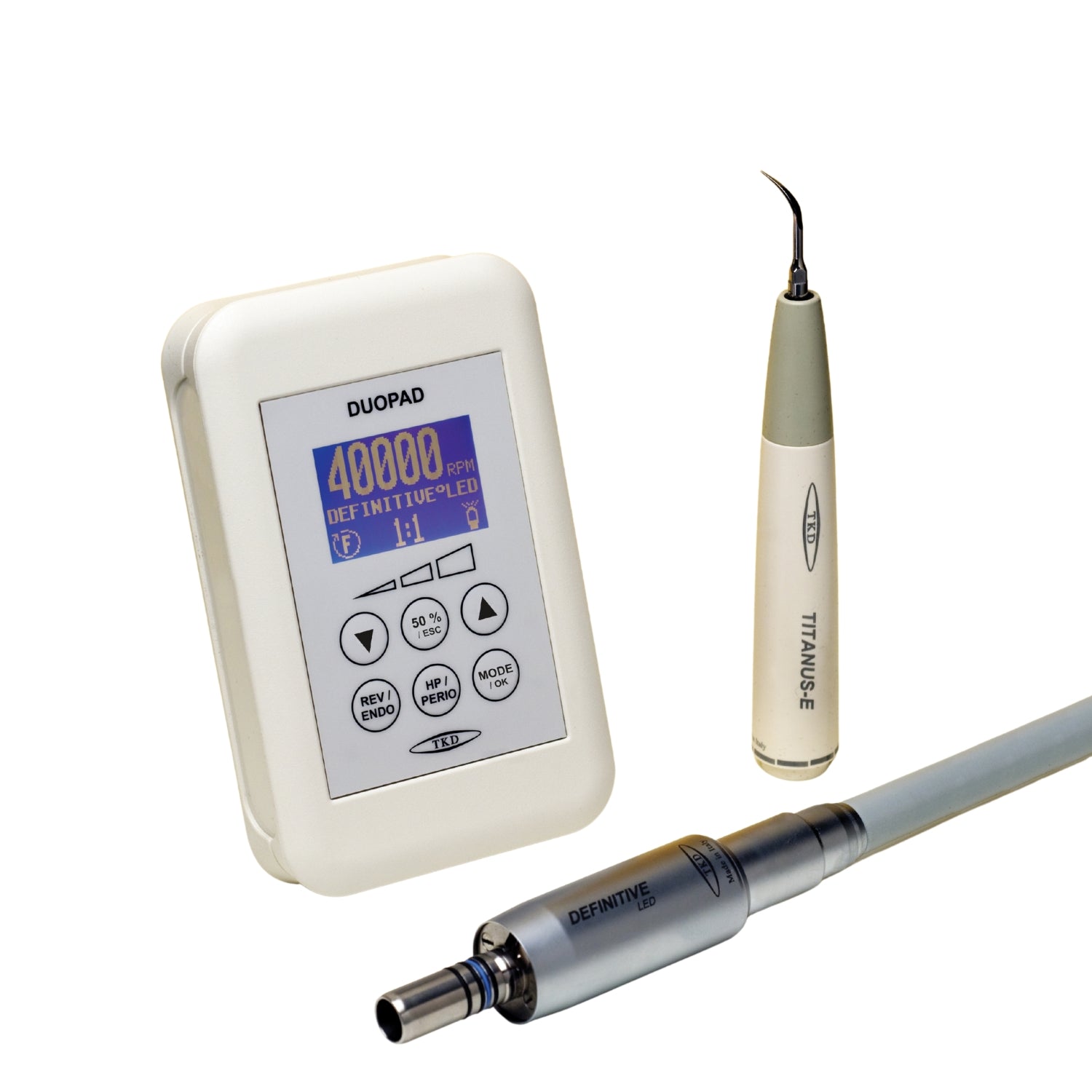

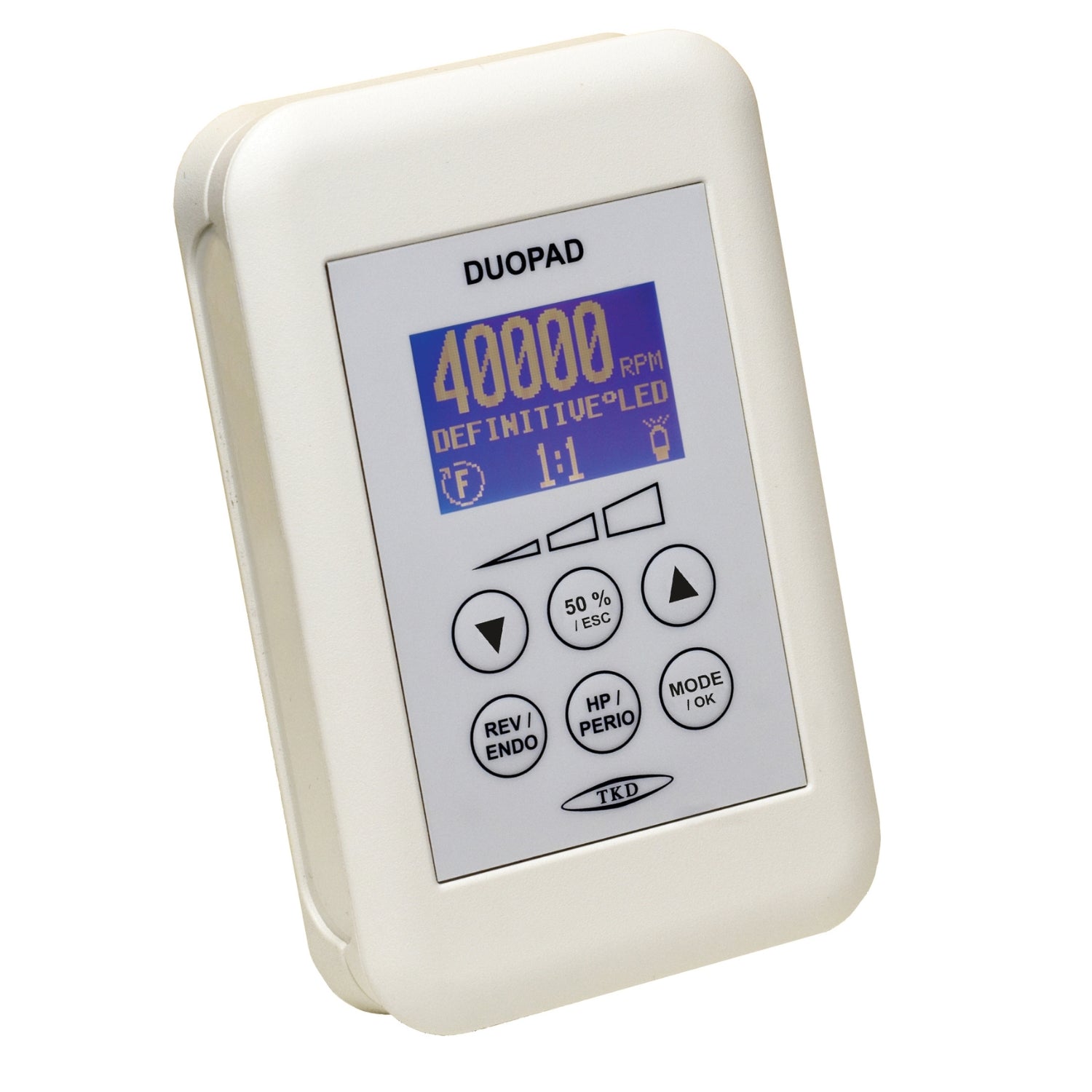

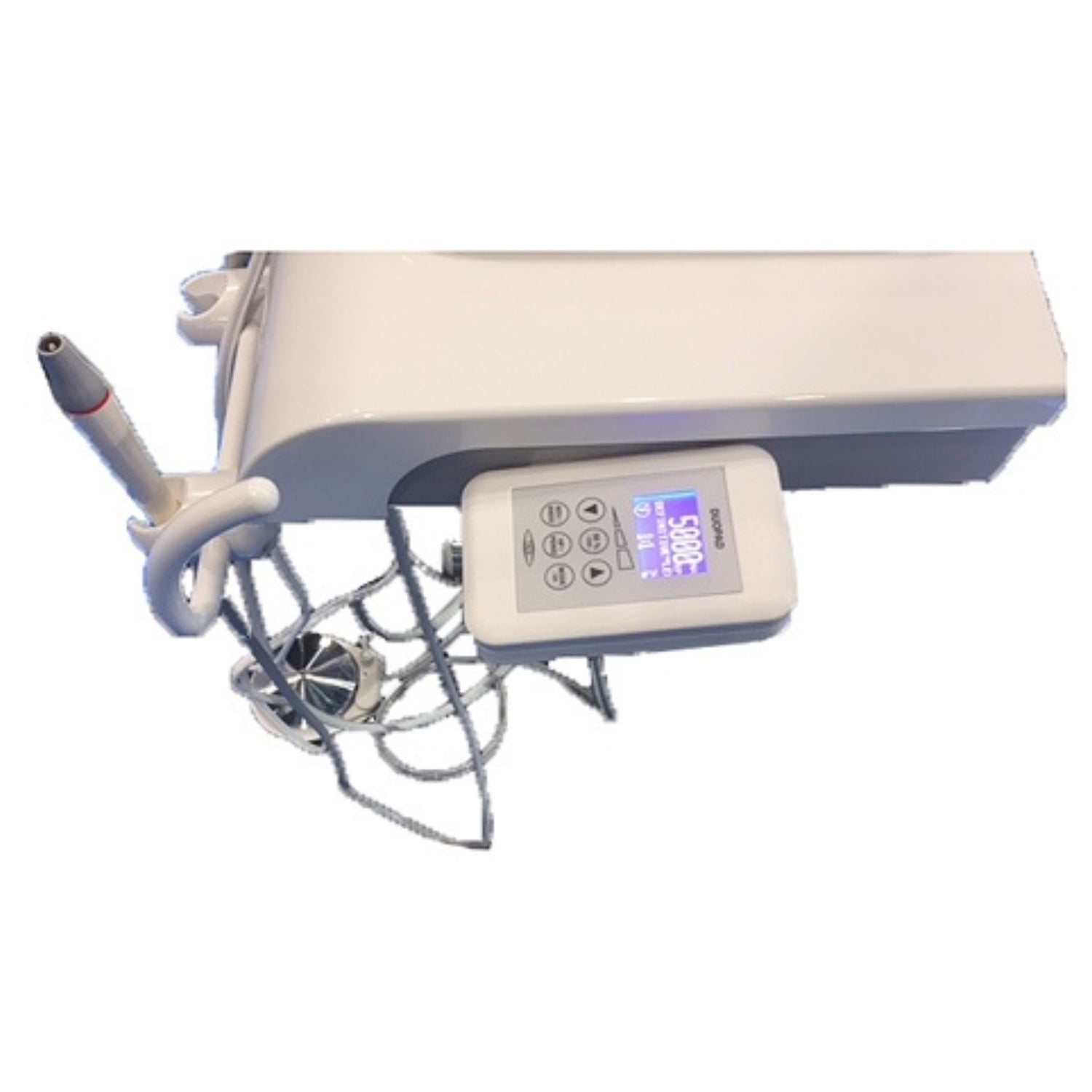

The Duo Pad is a control panel for the Definitive micromotor and Titanus E piezo-electric scaler. The Duo Pad control panel is meant to be easily fixed to the existing dental Unit’s frame and can be directly connected to the BMC40 and/or TN250 electronic boards. Commands and information are exchanged and transmitted via the integrated RS232 serial port. Information on the status of the active instrument is clearly displayed on the LCD graphic interface. Using the soft-touch keyboard, it is possible to choose the instrument and select the appropriate operating mode. If the micromotor is selected, it is possible to adjust speed and direction mode. It is also possible to select the gear ratio of the used contra-angle handpiece: the real output speed is therefore worked out and displayed on the LCD. If the scaler is chosen, it is possible to select the normal/perio/endo mode and adjust output power correspondingly.

Needs to be installed by a competent dental engineer

  • LCD display
  • Soft touch keyboard
  • Metal fixing bracket
  • 2 Micromotor ports
  • 1 scaler port
  • Max. Consumption: 22 mA
  • Compliance: CEI EN 60601-1-2
  • Supply Voltage: 13 Vdc ± 20%
