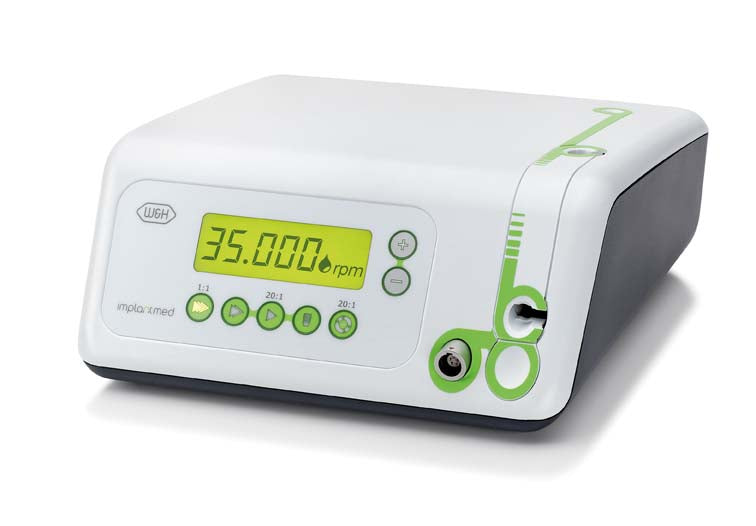

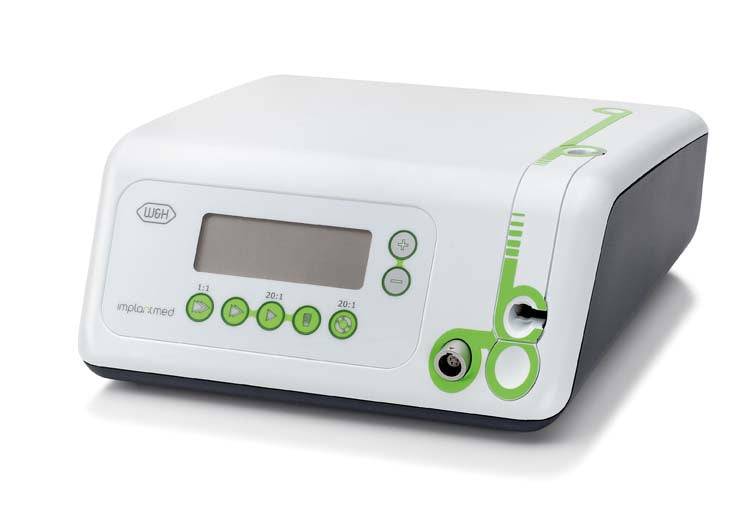

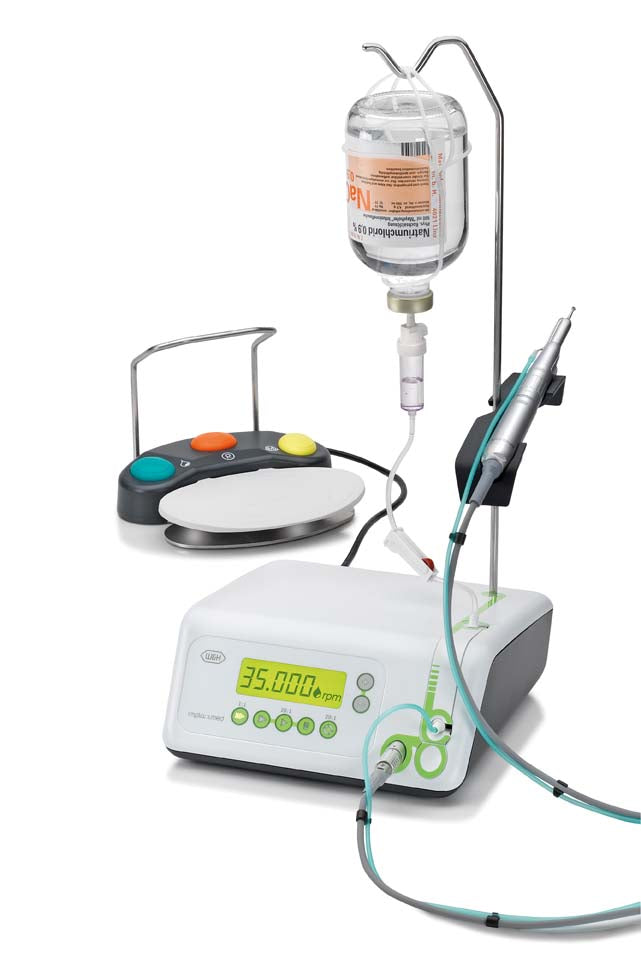

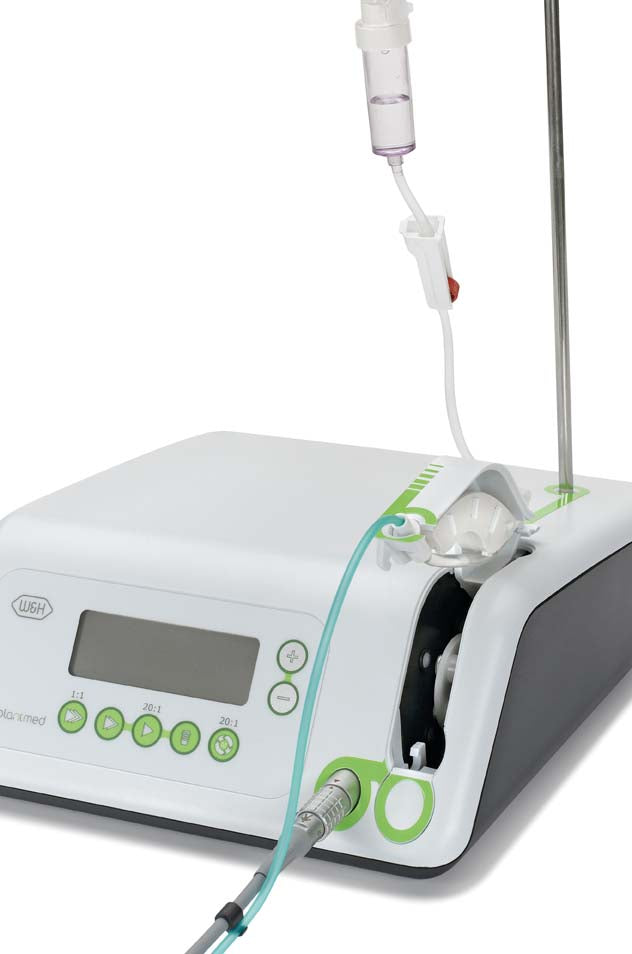

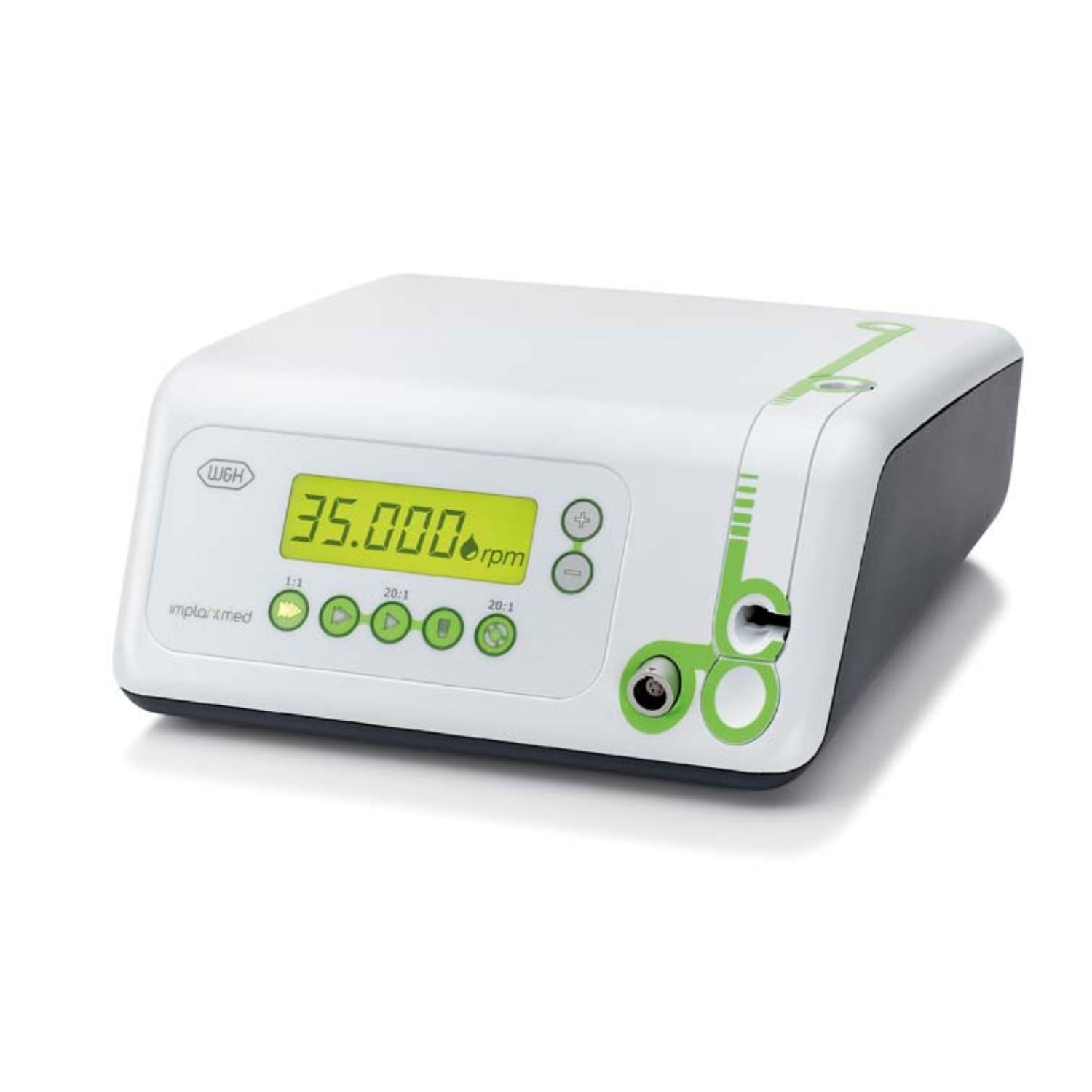

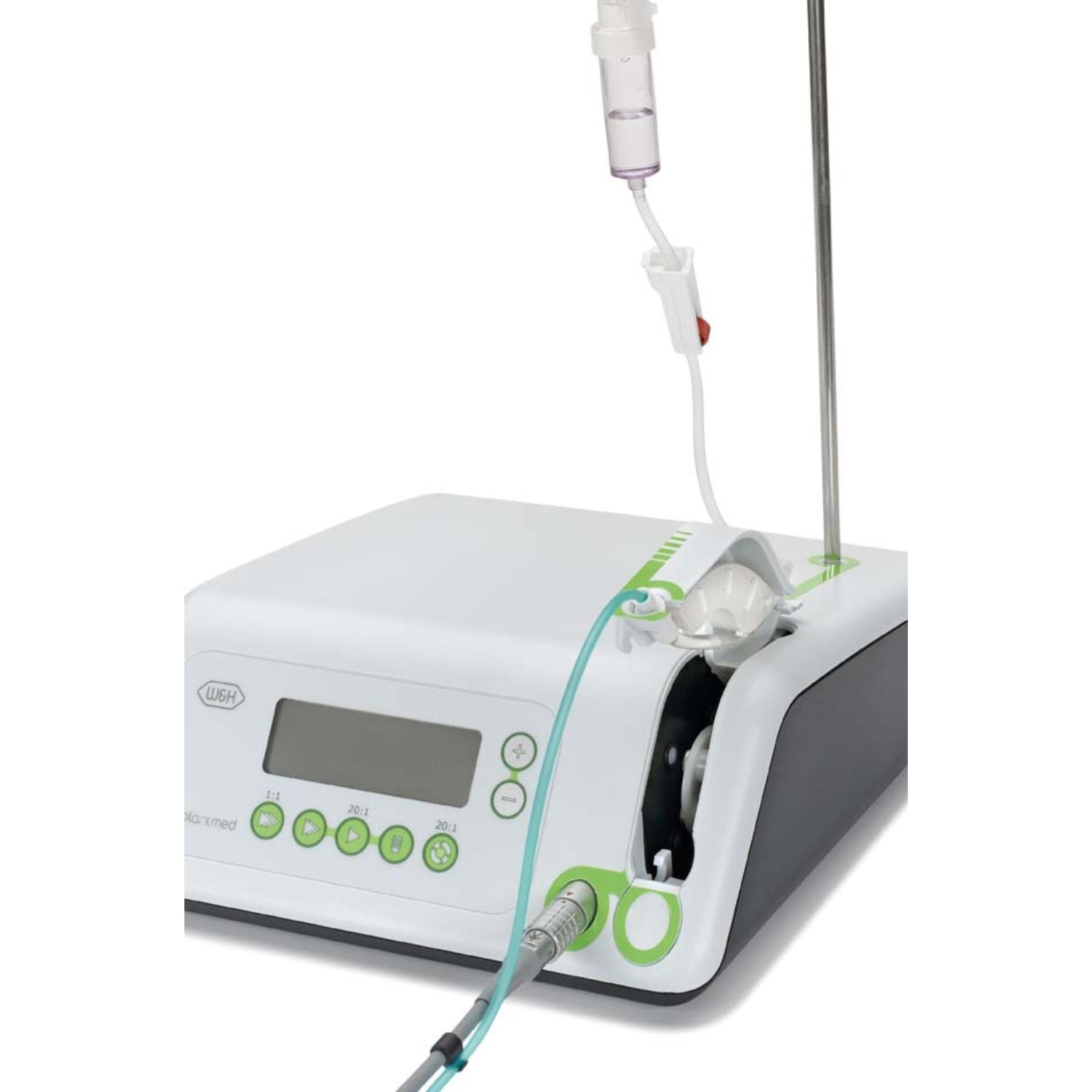

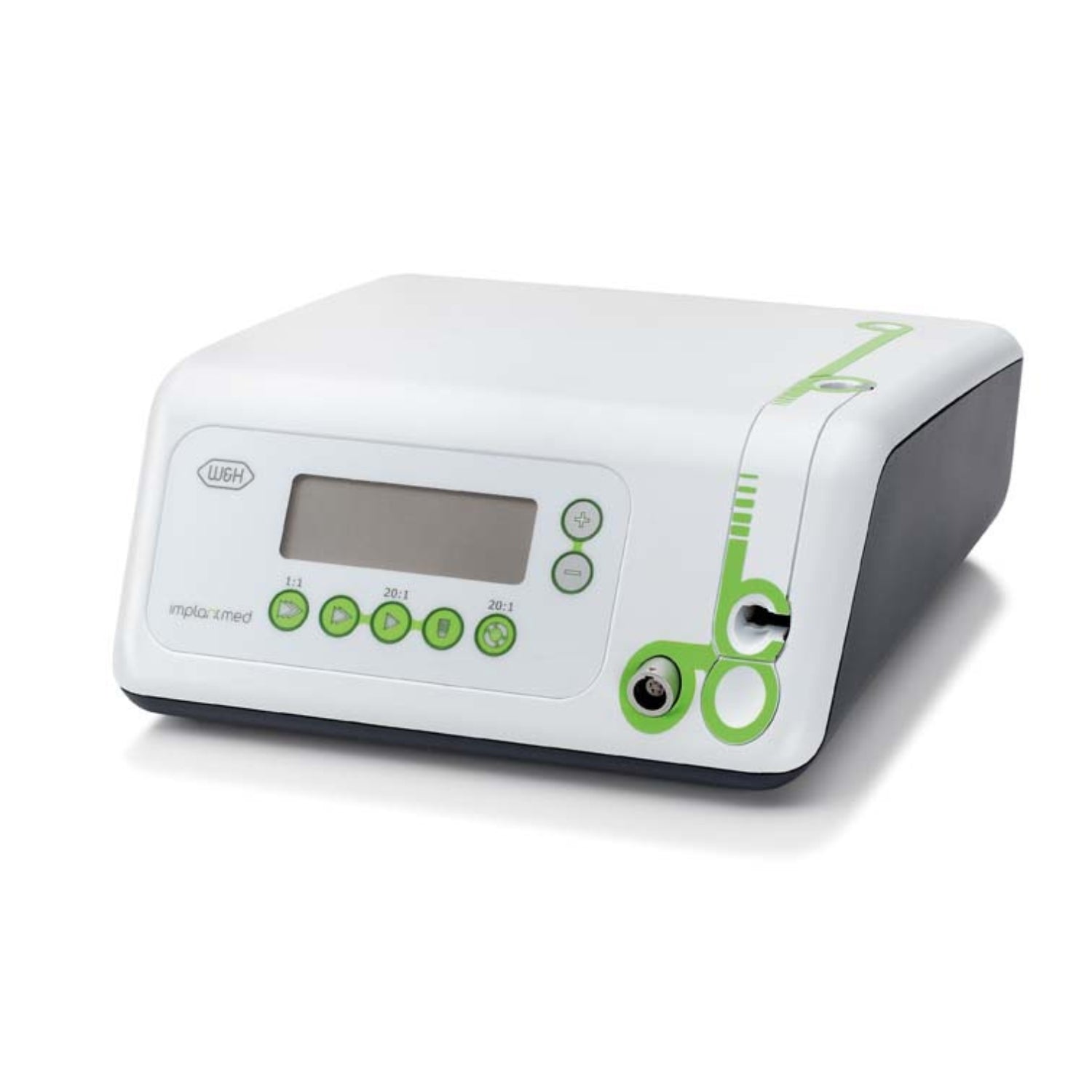

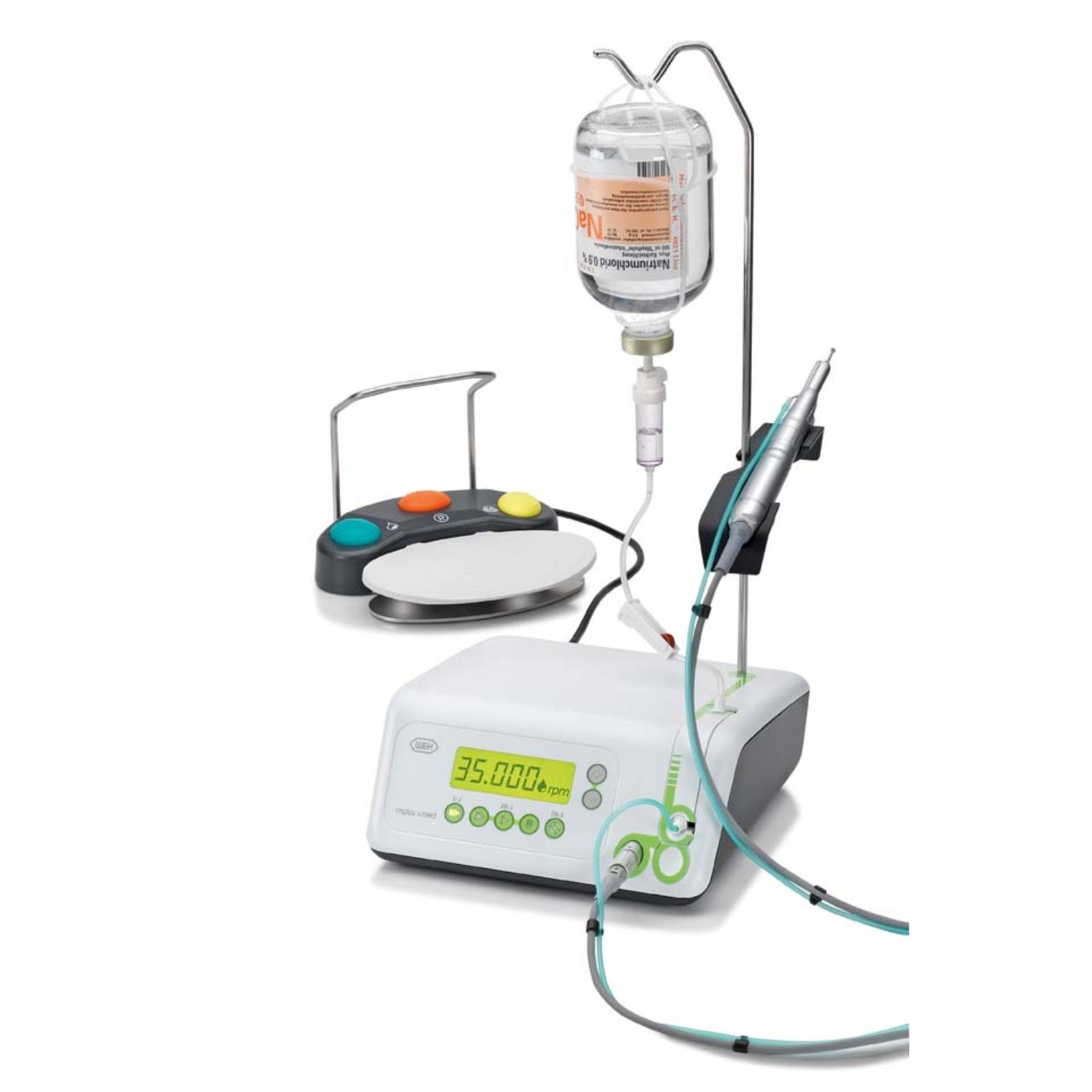

W&H Implantmed SI-923 Classic

Implantmed excels by virtue of its ease of operation, powerful motor and automatic thread cutter function.
The logically designed operating concept supports implantologists and ensures all programs can be set up easily, by pressing the buttons on the unit or by operating the foot control.

  • Easy to use
  • Powerful motor with 5.5 Ncm torque
  • Wide speed range: 300 up to 40,000 rpm at the motor
  • Precise torque limitation: 5 to 70 Ncm
  • Automatic thread cutter function
  • Motor with cable is thermo washer disinfectable and sterilizable


  • Max. torque at the rotary instrument (in program 4): 70 Ncm
  • Mains voltage: 220 – 240 V, 50 / 60 Hz
  • Max. mechanical output power: 70 W
  • Max. torque at the motor: 5.5 Ncm
  • Motor speed range in the nominal voltage range: 300 – 40,000 min-1
  • Intended transmission instruments Program 4 and 5: ISO connection 3964 (DIN 13.940), transmission ratio 1:1, 20:1 exclusively with WI-75 or WS-75 models
  • Length of motor cable: 1.8 m
  • Coolant flow rate at 100 %: min. 90 ml/min
  • Foot control: yes
  • Dimensions: H100 x W235 x D240 mm
