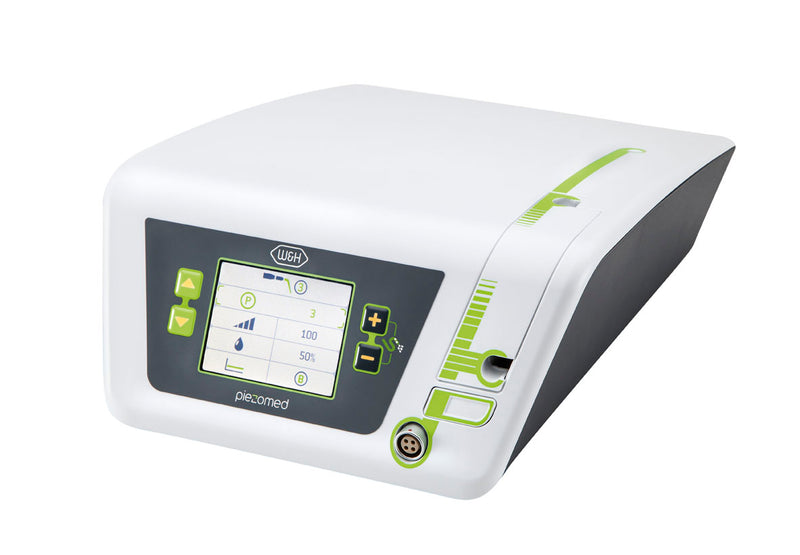

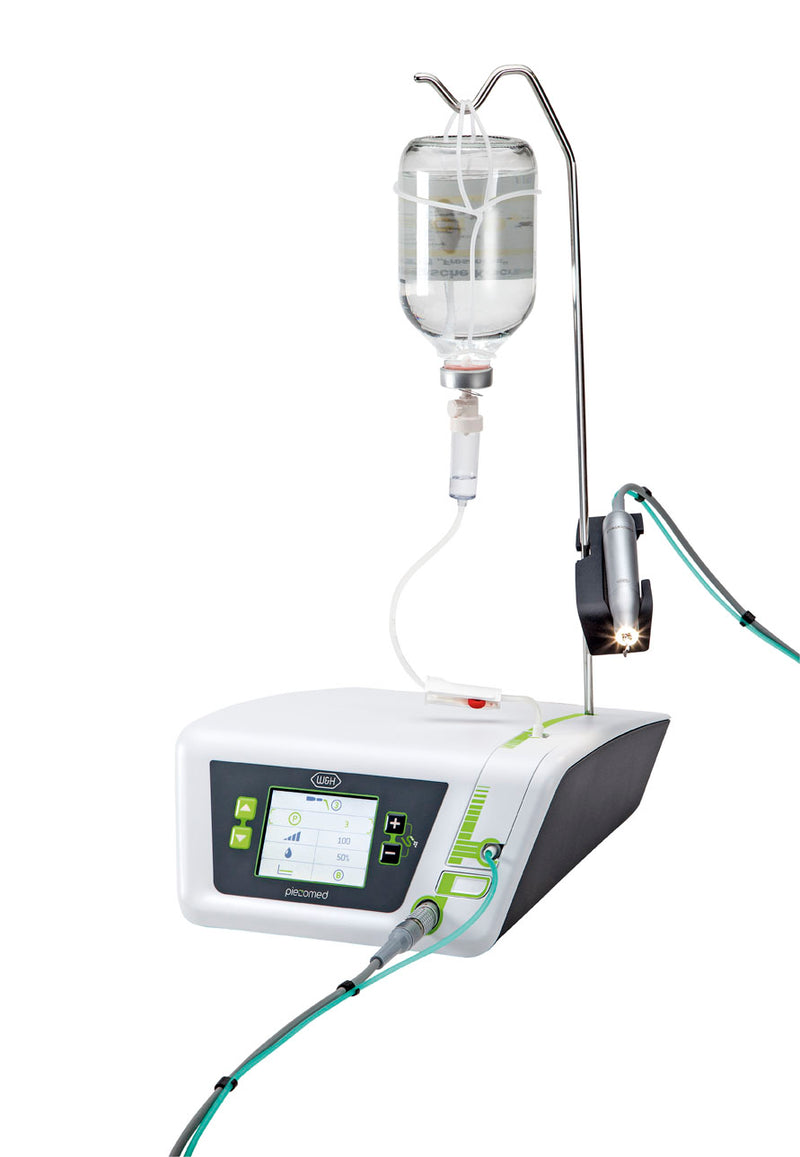

Minimally invasive, maximally effective - Ultrasound technology in oral surgery
Piezomed facilitates the surgeon’s and implantologist's work: thanks to innovative ultrasound technology, only bone substance is resected with high precision. The surrounding soft tissue remains uninjured. A noticeable relief for the patient: less pain, quicker healing!

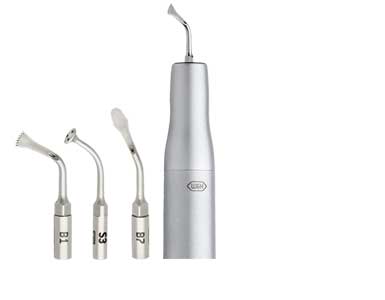

Automatic instrument detection in oral surgery:
As soon as an instrument is inserted, Piezomed automatically detects the instrument and assigns it to the correct power class.
This not only facilitates operation but also increases safety in oral surgery. In addition, the risk of overloading the instruments is reduced and the service life of your surgical instruments considerably extended!

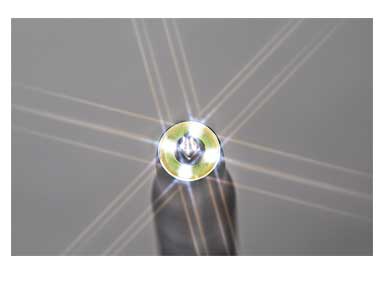

Innovative LED ring:
The shadow-free light ensures ideal illumination of the operating site.
The handpiece with LED socket and cable can be thermo washer disinfected and sterilized.

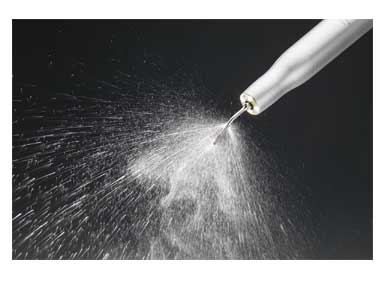

Cooling right where it is needed:
The supply of coolant through the instrument to near the operating point guarantees optimal cooling of the instrument and the hard tissue.
The spray exits near the instrument’s area of activity and cools the operating site extremely efficiently during maxillofacial applications.

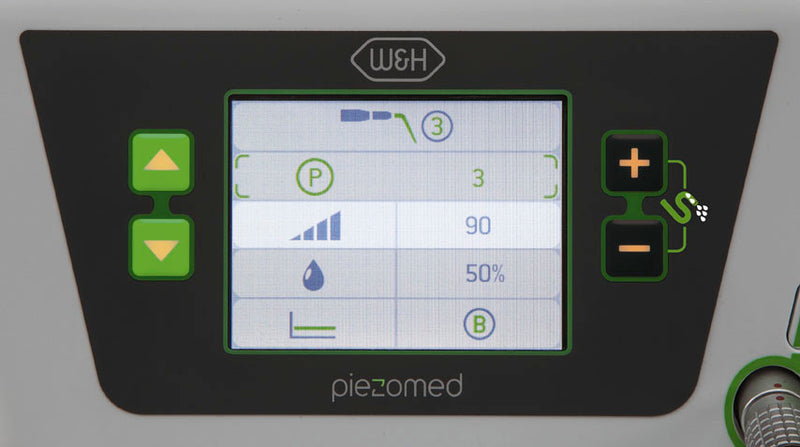

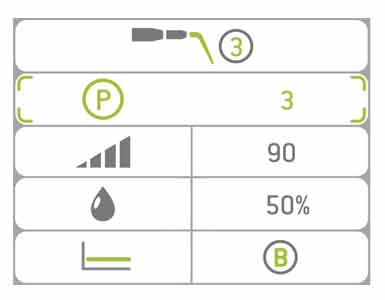

Individual performance setting for oral surgery:
Piezomed detects the instrument during insertion and sets the correct power class automatically.
The power can be changed manually within the detected power class.
Piezomed adapts to your style of working:
Piezomed adapts to your personal way of working and saves your last selected settings. The boost function can be used to increase the set basic power by 20 % for a short period of time.
"Power" operating mode: The handpiece’s power is increased by increasing pressure on the instrument. (Boost function possible)
"Basic" operating mode:The handpiece power remains the same irrespective of the load on the instrument. (Boost function possible)
"Smooth" operating mode: The handpiece‘s power is reduced by increasing pressure on the instrument.
Flexibility and individuality in working for oral surgeons:

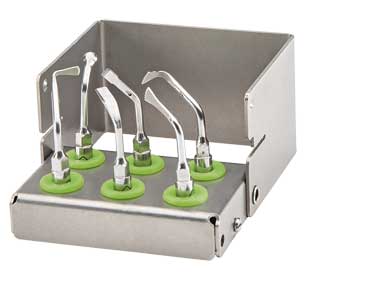

With its range of 33 innovative instruments, W&H offers you the right instrument for bone surgery, periodontology and extraction, retrograde endodontics as well as for lateral sinus lift.
- Automatic instrument detection
- Three individual operating modes
- Temporary 20 % power increase with boost function
- Ideal illumination of the operating field via an LED ring
- Efficient cooling due to the spray opening positioned close to the instrument’s working area
- LED handpiece and cable is thermo washer disinfectable and sterilizable
- Mains voltage: 220 –240 V
- Frequency: 50 – 60 Hz
- Max. power consumption: 90 VA
- Max. output power: 24 W
- Coolant flow rate at 100 %: min. 50 ml/min
- Length of handpiece cable: 1.8 m or 3.5 m

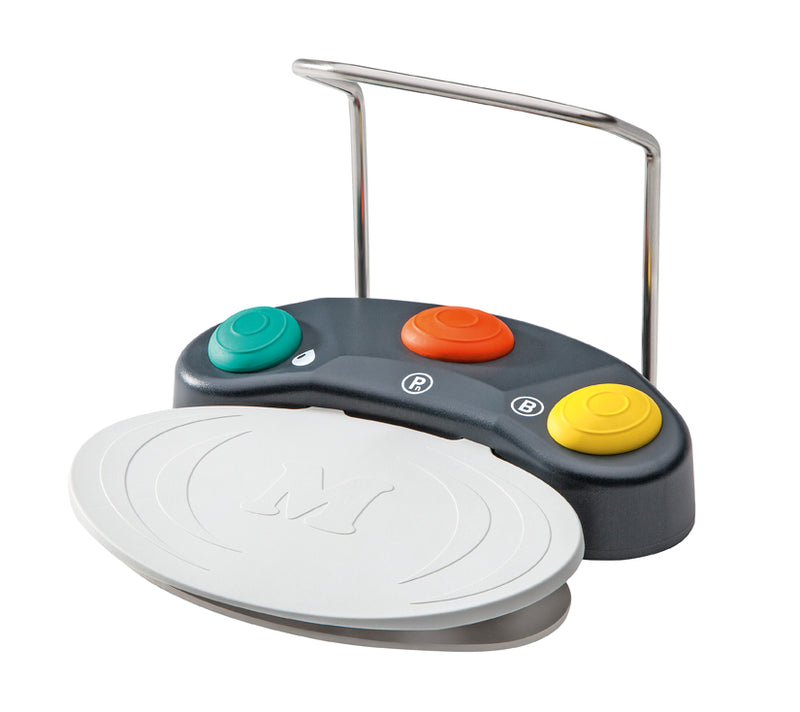

- Foot control: yes
- Dimensions: H109 x W256 x D305 mm
