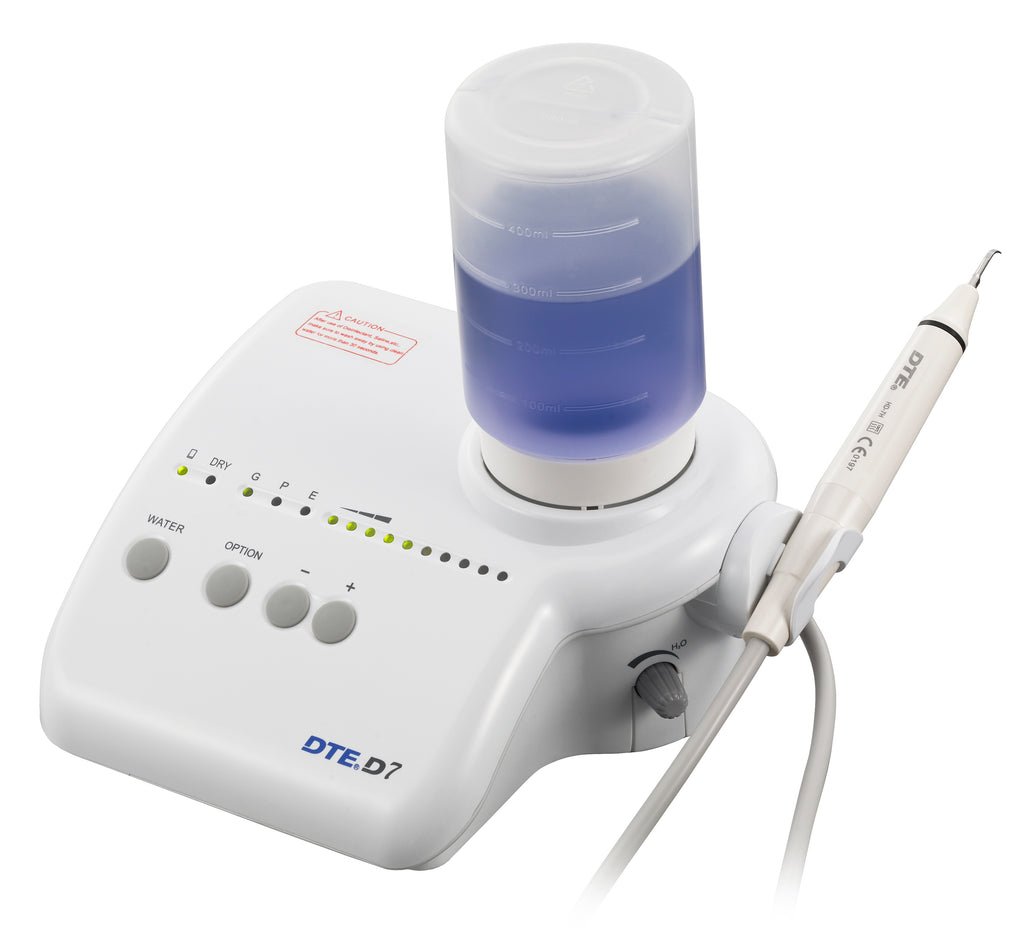

DTE D7 Ultrasonic Piezo Scaler Led and Non-Led

DTE D7 Woodpecker Piezo Aqua Ultrasonic Scaler | QUDENT

DTE D7 LED Ultrasonic Piezo Scaling Unit features anti-rot material applied to the internal water line system. Clinical solutions are applicable for automatic water supply mode, dramatically improving the performance of perio and endo functions.

Features:

• The water supply is from water bottles only
• Automatic frequency tracking system searches for the best working frequency
• Detachable handpiece and fully autoclavable
• Applicable for general, perio and endo functions
• Constant power output and more comfortable scaling
• No heating in the handpiece for greater patient comfort

Technical Specifications:

• Power input: 240v-50Hz/60Hz (1.2A Max)
• Main unit input: 30VDC (1.3A)
• Output primary tip vibration excursion: < 100 µm
• Tip vibration frequency: 28 kHz + 3 kHz
• Output half-excursion force: < 2N
• Output power: 3W–20W
• Water pressure: 0.1 Bar- 0.5 Bar (0.01MPa to 0.5MPa)
• Main unit weight: 1.35kg
• Adapter's weight: 0.3kg

Certification & Warranty:

• CE certified
• 12-month UK warranty

Packaging includes the following:

• 1 x D7 LED/ non-LED scaling unit
• 1 x DTE D7 LED ultrasonic scaler handpiece
• 12 x Scaler tips (GD1)
• 1 x GD1, GD4, GD5, GD6, PD1, PD3, PD4, ED1(8 Scaler tips)
• 1 x Torque wrench
• 1 x Power pack
• 1 x Foot switch
• 1 x Water bottle
• 1 x Hose
• 1 x Operational menu
